What is a baffle ceiling? Depth, shade and direction
A baffle ceiling is a set of linear profiles hung in parallel runs below the slab. From below you see rows of parallel lines instead of a flat ceiling, which gives a large room a clear direction. Inlife's WPC baffles come in three profiles and four wood-grain shades.
What a baffle ceiling is
Baffle ceilings replace the flat sheet overhead with slim vertical fins in parallel rows, with open space between them. Looking straight up you see a run of timber lines. At an angle the fins overlap and the ceiling reads as solid. That change of view is the whole idea: the ceiling has a pattern, and the pattern has a direction.
Inlife's baffles are WPC, a wood-polymer composite, in linear box profiles with a wood-grain finish. Each baffle is made of a bottom profile, a top profile and a finishing cap, in 3060 mm lengths.
Think of it as a ceiling you design rather than one you simply finish. The depth of the fin, the gap between fins, the shade and the direction of the runs are four separate choices, and each changes how the room feels from below.
They are used in commercial, institutional and public interiors: open offices and meeting rooms, stores, restaurants and hotels, schools and colleges, and large public halls. A baffle ceiling suits any room where the ceiling is large enough to need a pattern. For a closed ceiling of grooved planks, see readymade false ceiling panels. For fins cut to a design, see parametric ceilings.
How to choose the depth
All three profiles are 50 mm wide. The depth changes: 50, 75 or 100 mm. A deeper baffle gives a bolder line from below. A shallower one keeps the ceiling lighter.
| Profile | Reads as | Shown for |
|---|---|---|
| 50 × 50 mm | A shallow, square line | Lower ceilings and smaller rooms |
| 50 × 75 mm | A middle depth | Offices and retail |
| 50 × 100 mm | The deepest fin | Tall lobbies and large open spaces |
The rule is about scale. Match the depth to the height of the room and the distance from which people see it. A deep fin in a low room feels heavy overhead. A shallow fin in a tall lobby disappears. If you cannot decide between two, take the smaller for the lower ceiling and the larger for the long view across a big room.
How to choose the shade
The four named shades are Natural, Hazelnut, Walnut and Wenge. Natural is a light wood tone. Hazelnut is a soft mid-brown. Walnut is darker than Hazelnut. Wenge is the darkest, an almost black-brown. The catalogue also shows further numbered wood-grain shades, in mid and dark wood tones, which we can lay out at the showroom.
- Natural and Hazelnut sit well with pale floors, white walls and plants.
- Walnut and Wenge pair with stone floors and black metal for a darker scheme.
Look at the slab above too. Paint it a dark colour and the timber lines stand out. Leave it light and the look is softer. Decide this together with the shade, not afterwards.
A practical way to judge a shade is to imagine it against the largest surface near it. If the floor is pale, a dark ceiling pulls the eye up and the room feels taller. If the floor is dark, a pale ceiling lifts the whole room. Matching floor and ceiling in the same tone can make a room feel closed in.
Direction of runs and spacing

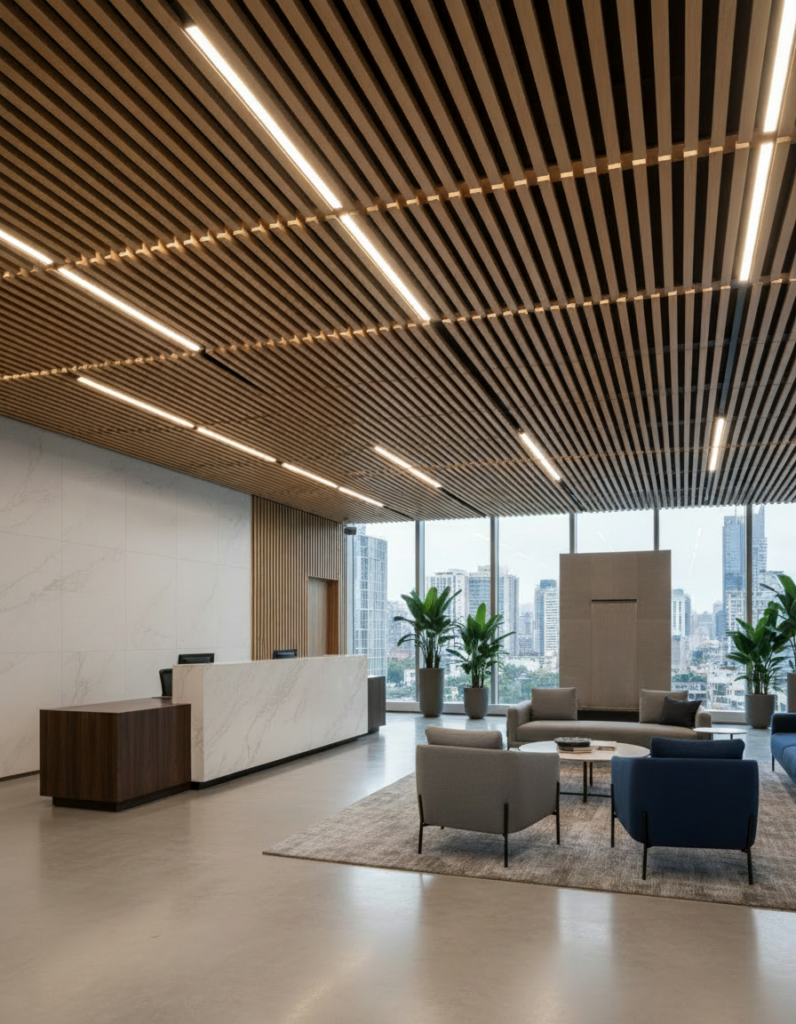

Direction matters more than any other choice. Baffles that run the length of a corridor draw the eye forward. Baffles across a room make it feel wider. In a reception, run them towards the desk or the entrance so the ceiling points at something.
Spacing is usually 50 to 150 mm, centre to centre, chosen to suit the room. Close spacing gives a dense, near-solid timber ceiling. Wider spacing shows more of the dark void above and gives a lighter, more graphic look. Lighting can sit between the fins as linear strips, or be dropped below as pendants.
Sketch the runs on your ceiling plan before you choose depth and shade. Lines that stop short of a wall, or cross a change in ceiling height, are easier to resolve on paper than in the room.
One more judgement: where the fins end. A run that stops at a wall with a clear gap reads differently from one that meets it. Decide how you want the edge to look and mark it on the plan.
Baffle against a flat false ceiling
A flat false ceiling is one continuous surface. A baffle ceiling is a set of lines with gaps. The two read very differently, so compare them on look and scale only.
| Baffle ceiling | Flat false ceiling or grooved panels | |
|---|---|---|
| Surface | Parallel fins with open space between | One continuous plane |
| From below | Rows of lines, solid at an angle | A plain field, or a field of grooves |
| Scale | Suits large ceilings that need a pattern | Suits ceilings of any size |
| Direction | Strong; the runs point somewhere | Neutral unless grooves are used |
| Above the ceiling | Visible through the gaps | Hidden |
Soffit panels are flat, grooved planks, 305 mm or 230 mm wide, that form a closed, continuous ceiling. A parametric ceiling uses shaped fins that form waves and ripples to a custom design. A baffle ceiling sits between the two: regular and straight, but open.
The question to ask is whether the ceiling should be a background or a feature. A flat ceiling recedes and lets the walls and furniture lead. A baffle ceiling is seen, so it must work with the rest of the room. In a small room with a low ceiling, a flat plane is usually the better choice. In a large room, a plain ceiling can feel empty, and the baffle gives the eye somewhere to go.
Where baffles are used
The product data lists offices, retail, hospitality and healthcare.
- Offices. Open workspaces, meeting rooms, cafeterias and reception areas.
- Retail. Showrooms and stores where the ceiling leads people through the space.

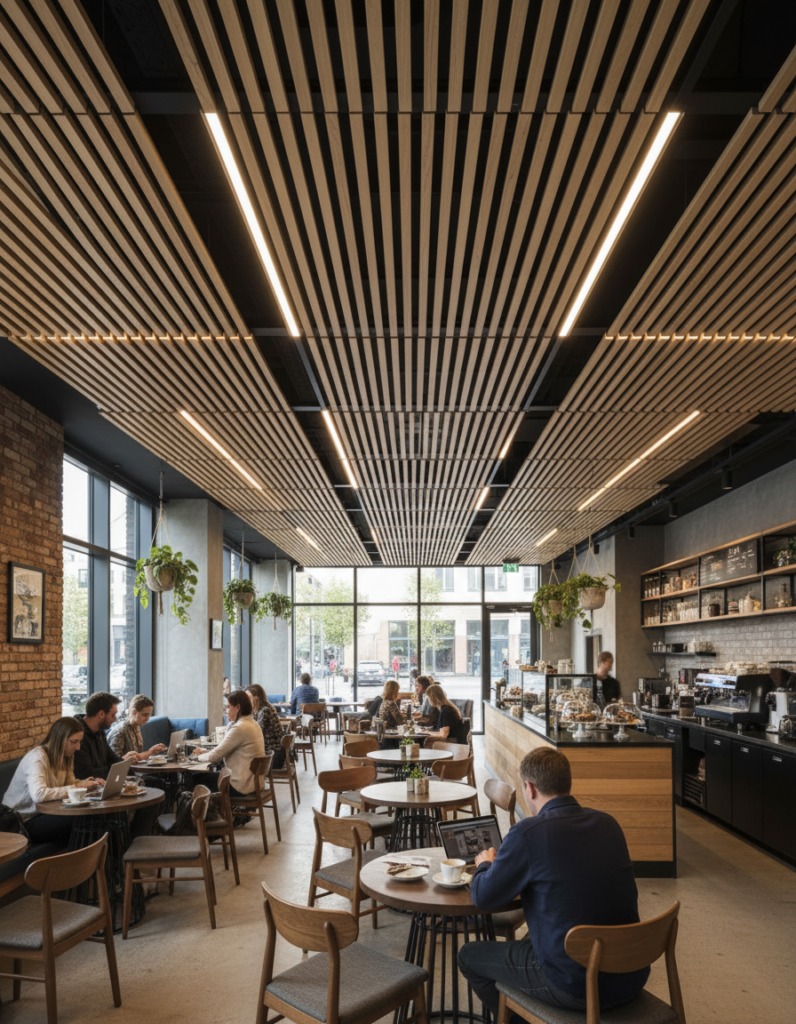

- Hospitality. Hotel lobbies, restaurants, lounges and banquet pre-function areas.
- Education and public buildings. Libraries, auditorium foyers, large halls and corridors.
- Healthcare. Waiting areas and receptions.
Seeing them at the Choolai showroom
Visit Inlife - Nakoda Creations, 2 Baker Street, Choolai, Chennai, Monday to Saturday, 10 am to 8 pm. Catalogues are shared on WhatsApp, and samples can be sent to offices in Chennai only, up to 12 per request.
- Bring your ceiling plan with the room height marked, a photo of the room, and your floor and wall samples.
- Hold the three depths side by side and look at them from below, as you would in the room.
- Check each shade by window light and under the showroom lights. Dark browns shift most between the two.
- Ask to see the numbered shades beside the four named ones.
- Decide the direction of runs before you arrive, so you can ask about lengths against your room.
Questions people ask
What is a baffle ceiling?
A ceiling of linear profiles hung in parallel rows below the slab, so the room shows rows of lines instead of a flat surface. Inlife's baffles are WPC with a wood-grain finish.
What sizes do Inlife's baffle ceilings come in?
Three profiles, all 50 mm wide: 50 × 50 mm, 50 × 75 mm and 50 × 100 mm, in 3060 mm lengths.
What colours are available?
Four named wood-grain shades, Natural, Hazelnut, Walnut and Wenge, plus further numbered shades in the catalogue.
What are the baffles made of?
WPC, a wood-polymer composite, in linear box profiles with a wood-grain finish.
How do I choose the depth of a baffle?
Match it to the scale of the room. The 50 × 50 mm profile is shown for lower ceilings, 50 × 75 mm for offices and retail, and 50 × 100 mm for tall lobbies and large open spaces.
